Tank. Component. Rear fixing kit. Suitable for use with Monkey or Gorilla

Tank. Component. Rear fixing kit. Suitable for use with Monkey or Gorilla
  • Click to enlarge

£3.59 £2.99 ExVAT


Product Code: 0593

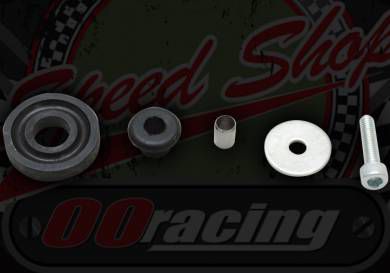

Tank fixing kit for the rear of the tank. Rear Mounts.

Please note: new up rated version, looks different (no bolt) photo to be updated

Suitable for use with Monkey or Gorilla fitting

How to use:
Place the large rubber on the frame over the rear mounting hole.
Ensuring your front mounts are in place; situate the tank on the frame.
Fit the metal dowel inside the Smaller flanged rubber.
Thread the bolt through the washer.
Locate the flanged rubber through the tank fixing hole so the rubbers align.
Locate the bolt in the frame and tighten. (DO NOT OVER TIGHTEN)

VERY IMPORTANT:
Ensure the tank does not dome into direct metal to metal contact with the frame. This will cause a failure in the seams.

Dimensions:

  • Large rubber: 36 X 13 X 7 (mm) OD/ID/W
  • Small rubber: Body:    13 X 8 X 11 (mm) OD/ID/W, Flange:  20 X 8 X 3  (mm) OD/ID/W
  • Dowel:             8 X 6.5 X 10 (mm) OD/ID/W
  • Washer:          20 X 6.5 X 1.5 (mm) OD/ID/W
  • Bolt:                 M6 X 25 X 1.00 (mm) OD/L/Pitch



Product Code 0593
Condition New
Weight 0.1Kg
