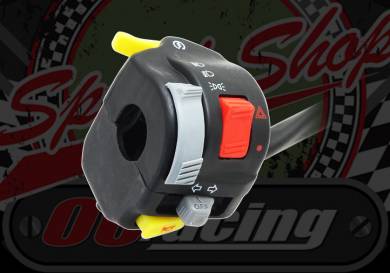

Switch gear universal left hand with multi function

Switch gear universal left hand with multi function
  • Click to enlarge

£40.00 £33.33 ExVAT

Product Code: 7695

Switch gear universal left hand with multi function





Fits on the Standard width 7/8th"  (22mm) bars

Functions:

  • Lights switch ON, HIGH, LOW BEAM
  • Turn LEFT/RIGHT push to cancel
  • Horn push
  • Start or kill push
  • Rocker switch hazard warning



Wiring:





  • Brown = + Feed in
  • Blue = High beam
  • White = Low beam
  • Green = Earth
  • Yellow/red = start button – Neg feed out
  • Light green = Horn feed – Neg feed out.
  • Grey = Flasher feed in from flasher unit +
  • Orange = Left turn +
  • Light blue = Right turn +

Product Code 7695
Condition New
Weight 0.4Kg
