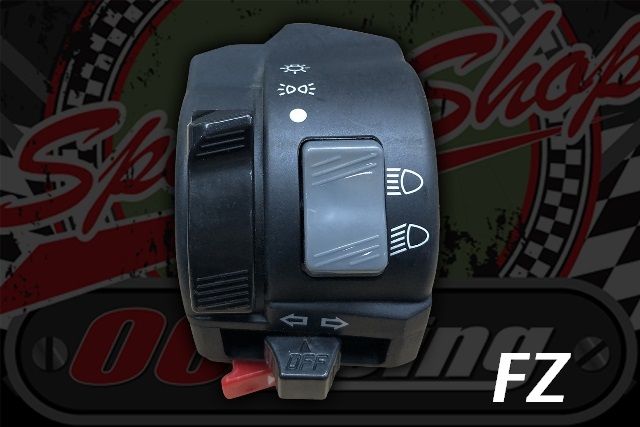

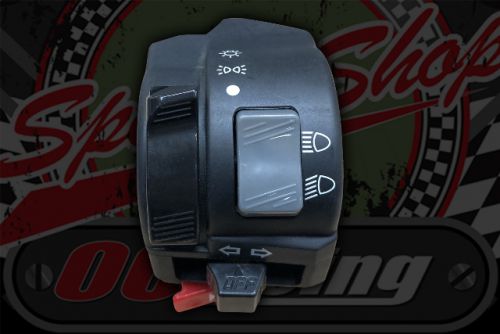

Switch gear universal all in one L/H FZ style fits 9301 loom

Switch gear universal all in one L/H  FZ style fits 9301 loom
  • Click to enlarge

£19.99 £16.66 ExVAT


Product Code: 5438

Switch gear. universal all in one L/H FZ stylefits 9301 loom

Functions:

  • Lights OFF/PILOT/MAIN
  • TURN L/R (with fast cancel)
  • High/Low beam
  • Horn Neg switch

Specifications:

  • Fits on the Standard width 7/8th"  (22mm) bars
  • 400mm Wiring loom cable with 9 pin block connector + 1 male bullet connector
  • 45mm Wide Body
  • 60mm deep body
  • Locating pin



Wiring:

  • Black - Power input +
  • Brown - Side Light
  • Yellow - Main Light feed in +
  • Yellow/White - High Beam
  • Pink - Low beam
  • Light Blue - Flasher L/H
  • Grey - Flasher feed in +
  • Orange - Flasher R/H
  • Light Green - Horn
  • Green - Ground
Product Code5438
ConditionNew
Weight0.3Kg
