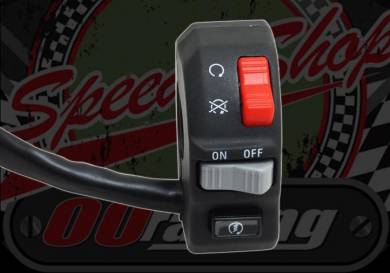

Switch gear R/H universal fitment

Switch gear R/H universal fitment
  • Click to enlarge

£29.99 £24.99 ExVAT


Product Code: 7739

Switch gear R/H universal fitment

Fits on the Standard width 7/8th"  (22mm) bars

  • Lights on/off
  • Engine kill switch
  • Start button


Wiring:

  • White = Kill switch
  • White/black = Kill switch
  • Black/yellow = Lights feed + in
  • Yellow = Tail light
  • Yellow/red = Head light
  • Red = Start button push
  • Black/red = Start button push



The below is for if you need the swith to work when not pressed.

  • Black = Start button not pushed
  • Blue = Start button not pushed



Product Code 7739
Condition New
Weight 0.300Kg
