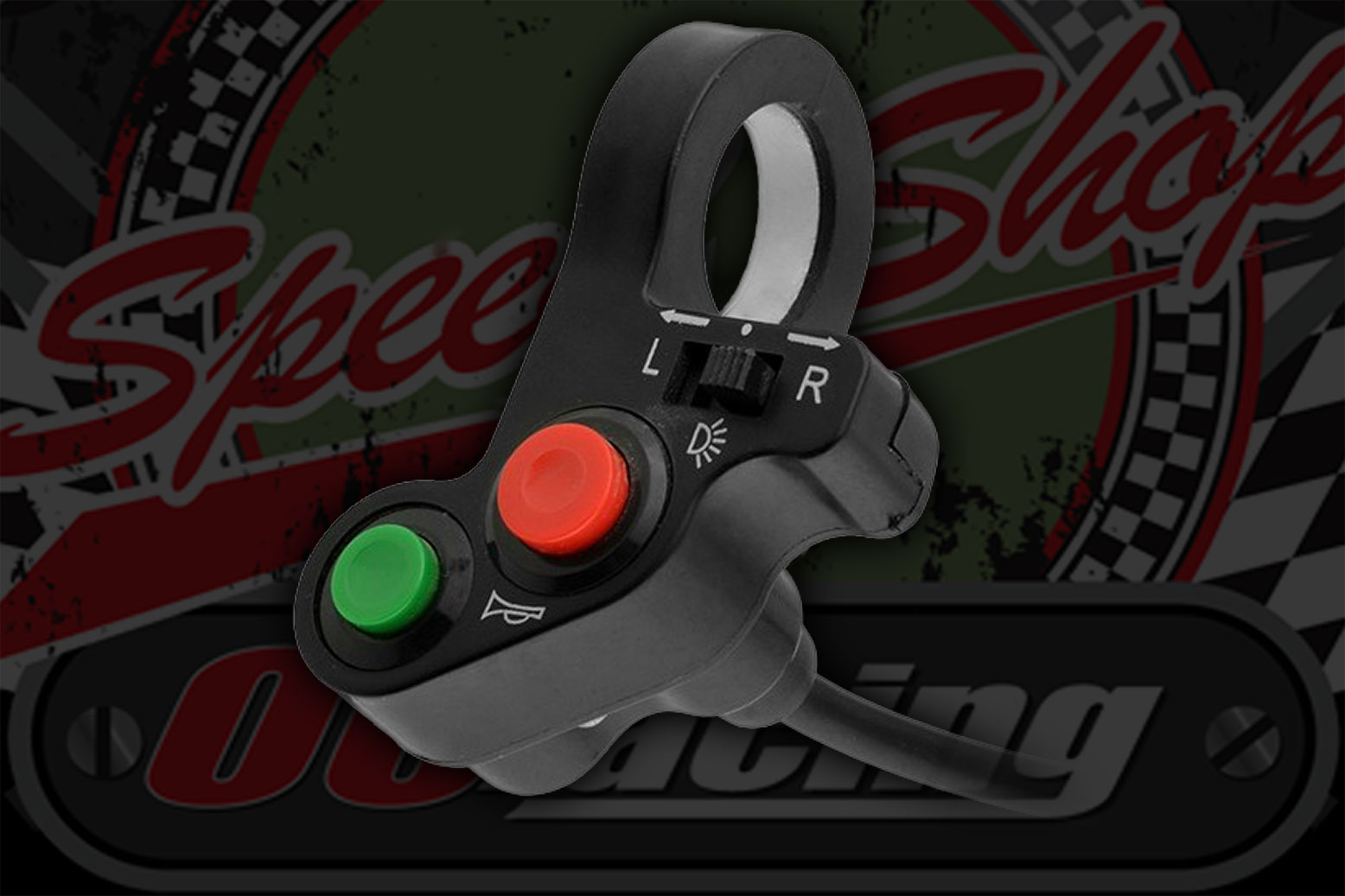

Switch gear. Micro. Left hand. Horn. Turn. Light ON/OFF. Universal

Switch gear. Micro. Left hand. Horn. Turn. Light ON/OFF. Universal
  • Click to enlarge

£13.98 £11.65 ExVAT

Product Code: 9944

Custom Switch Gear. Reinforced mount. Light weight construction

For a very nice looking and snug fit this switchgear works well with THIS CLUTCH LEVER AND PERCH

Kit includes:

  • Switchgear body
  • Left - Right Indicator switch
  • On off button (red)
  • Push switch (Green)
  • Wiring Loom



Specifications:

  • Fits standard width 7/8th"  (22mm) bars
  • Indicator switch Max load 2 x 10W or LED
  • Aluminium mounting insert with grub screw to lock in place
  • Horn can be wired direct if using low wattage horns. Low = 90Db small units. High output horns require a relay
  • Headlight On/OFF switch needs to be wired in via relay as switch is light weight and will not take a large load for long durations
  • Can be used with 6V or 12V systems



Wiring. Indicator:

  • Red = Power in from flasher
  • Yellow = Left
  • Green = Right

Wiring. Horn:

  • White = Power in
  • White = Power out

Wiring. Lights:

  • Blue = Light power in
  • Blue = power out



The wires that are the same colour doesn’t matter what way you use them as they are on of switches.



Product Code 9944
Condition New
Weight 0.3Kg
