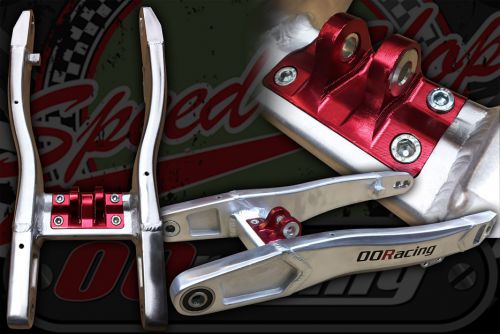

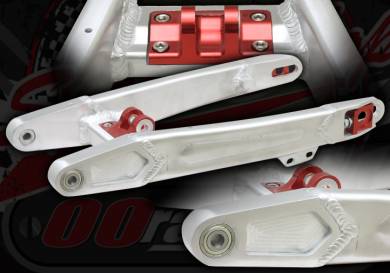

Swing arm. MX. Pit bike. 400mm or 425mm

Swing arm. MX. Pit bike. 400mm or 425mm
  • Click to enlarge
  • Click to enlarge

£85.00 £70.83 ExVAT

Product Code: 7915

Swinging arm bearing MX pitbike
With CNC lower shock mount 10mm
Now in silver brushed finish can be polished not anodized.
Inserts 2 x roller bearing pivots.

2 x CNC chain adjusters

400mm arm has the top mounted shock point fixed/welded 25mm above arm.

425mm arm has the removable cnc red shock mount insert that sits below the top of arm by 16mm NO BOLTS SUPPLIED

10mm Pivot

15mm axle

Swinging arm pivot width 122mm
Axle area width inside 182mm
Shock width 20mm M10 bolt
Length 400mm or 425mm from pivot to chain adjuster center

Bearings supplied not fitted




Product Code 7915
Condition New
Weight 3Kg
