Stainless 304 exhaust/inlet pipe bends 30 degree Sizes OD from 28mm to 51mm

Stainless 304 exhaust/inlet pipe bends 30 degree Sizes OD from 28mm to 51mm
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

£4.20 £3.50 ExVAT


Product Code: 5476

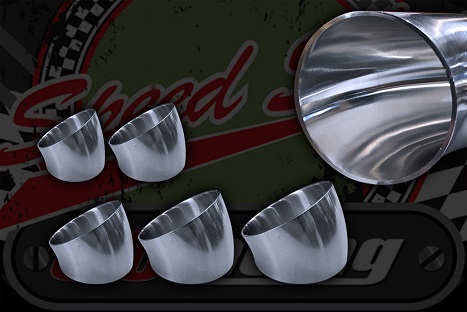

Stainless 304 exhaust/inlet pipe bends 30 degree. Sizes from 28mm to 51mm.

We do other bends, fittings and straight pipe in our main ooracing store (stainless bends)

Bends in degrees 30 45 60 90 180

T Pieces

Y Pieces

All sizes are OD (outside diameter)

45mm have a slightly rougher cut on one side

Price per bend

Wall thickness 1.5mm 304 grade is nice to weld less brittle than the 316 grade.

There a nice tight bend with a clean cut so you can but weld close connections to get really tight turns

We decided to stock these really useful polished 304 grade bends for custom exhausts or inlets, and water pipe systems.

You can simply use insulation tap to hold your bends to the straight pipe to mock up your system, holds well so you can take it to your local Tig welder and get him or her to cut a 10mm strip out your tape to tack weld in 2 places before removing all the tape.

Sizes we stock below sizes

28mm 1 1/8”

32mm 1 ¼”

34mm 1 11/32”

38mm 1 ½”

40mm 1 37/64”

42mm 1 21/32”

45mm 1 ¾”

48mm 1 7/8”

51mm 2”

Product Code5476
ConditionNew
Weight0.1Kg
