Mini Alarm system 125DB remote starting

Mini Alarm system 125DB remote starting
  • Click to enlarge
  • Click to enlarge

£19.99 £16.66 ExVAT


Product Code: 8911

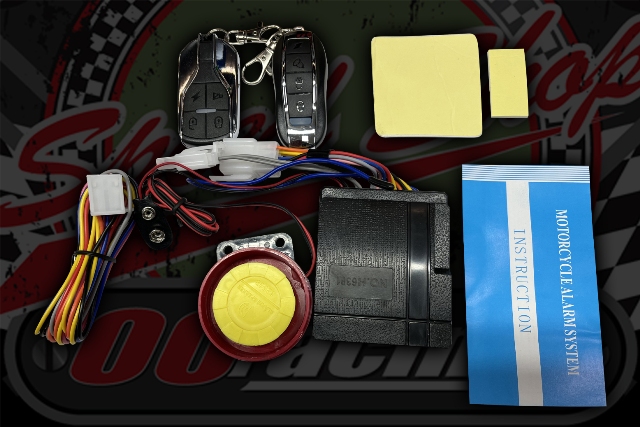

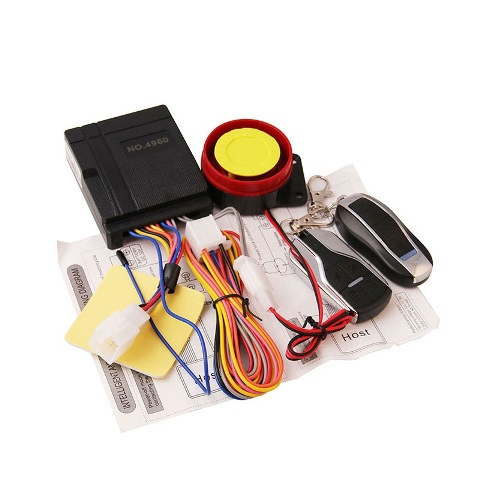

Mini Alarm system 125DB remote starting

Comes with mini harness

This is a good compact unit we have used a number of them as standard fitment.

12V D/C supply needed

Has 9V Back up battery plug this you don't have to use.

You can just wire into battery and not wire the rest so it just acts as a motion alarm

Remote led warning light

Key fob function

Arm ON/OFF

Button to set off alarm

Also has start button so you can remotely start your engine from 20 meters away!

Can be wired in fully with indicators flashing or just as alarm 2 wires + & -

Wiring

Red Battery power in +

Black Battery Neg in –

2 yellows = Flasher feeds L/H R/H + positive

Above wiring gets you a basic alarm working with all 4 indicators flashing

Blue  = Starter solenoid switch feed + “remote starting”

Orange = Ignition feed out after cranking button pressed “D/C ignition only.

Pink & Grey = Neg switches when alarm is activated. Can be use to earth out pulse coil to kill spark..



Product Code 8911
Condition New
Weight 0.3Kg
