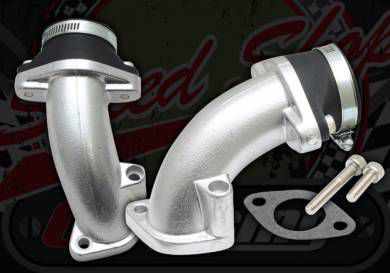

Manifold. 26mm. Push fit. Back. Left. VM Carbs. Hi-Flo. T6

This is a smooth bore manifold designed to increase manifold air speed and increase the top end induction speed; reducing early rev loss.

The manifold is tapered from 28mm to 24mm to force an increased airflow. Can be ground out to 26mm

It’s has the normal off set to the left back. Can be used with carb spinner to get straight back.

Has a high grade rubber flange intake to take the PWK and VM carbs with 35mm stubs.

Suitable for use with all the YX, Lifan, Zongshen (Honda port), Honda, Ducar Engines.



Kit includes:

  • Manifold
  • Carb rubber
  • fixing bolt
  • Gasket
  • Jubilee clip



Specifications. Manifold:

  • 28mm Aperture manifold to carb rubber
  • 24mm Aperture at head end
  • 80mm height (overall)
  • 45mm fixing to Cylinder head. center to center
  • 56mm Fixing to Carb rubber THREADED. Center to center
  • 34mm Aperture for a 35mm Carb output
  • Back Left



Specifications. Rubber:

  • 28.5mm Throat
  • 34mm Aperture for Carb output
  • 56mm Fixing holes center to center



REPLACEMENT RUBBER



PLEASE NOTE

WILL NOT FIT THE ZONGSHEN Z155 ENGINE

G37-1

Product Code 3170
Condition New
Weight 0.5Kg
