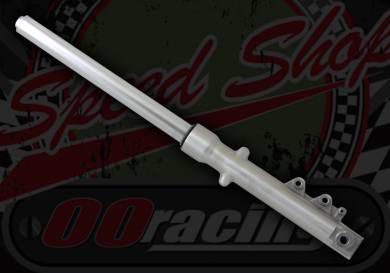

Fork leg. Left. Brake side. Suitable for Madass 125 & late 50's.
Specifications:
- 37mm Diameter stanchion
- 46mm Diameter body
- 57mm Diameter Throat on body for seals
- 350mm Length body excluding dust seal
- 380mm length stanchion tube from body.
- 15mm Aperture for Axle
- 22mm hex head top bolt securing spring
- 62mm centers for mudguard mount
- 10mm Brake mounting holes
- 54mm centers for break mount
- 6mm threaded lug below brakes
- M10 bolt in base for disassembly. (8mm Allen key)
- 3.4Kg weight with oil. (3.5Kg reworked)
- Chromed steel Stanchion tube
- Alloy Polished body (brushed finish)
- Lacquered finish to protect body
CHECK FIRST WHAT AXLE SIZE YOU HAVE
Finished to a good standard. Very solid feeling sturdy fork.
More balanced fork when buying both left and right reworked.
Completely transforms the feel of the bikes standard soft ride.
Reworked fork option:
- 30W Silkolene Fork oil
- OORacing spring spacer
- Complete inspection of all components
- Replace and refit any badly fitted components
- Ensure all fixings are tight and secure
