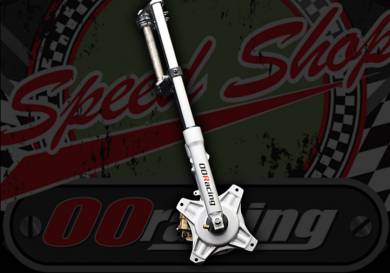

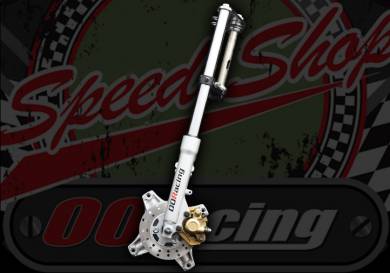

Fork kit. Up grade to 155mm disc brake. Hydrolic 26mm or 30mm forks. Suitable for use with DAX or CHALY

Fork kit. Up grade to 155mm disc brake. Hydrolic 26mm or 30mm forks. Suitable for use with DAX or CHALY
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

£130.00 £108.33 ExVAT


Product Code: 0584

Fork kit. Up grade to disc brake. Hydrolic 26mm or 30mm forks. Suitable for use with DAX or CHALY

This front end kit will enable you to convert your DAX or Chaly to use a disc brake system. This offers enhanced braking over the standard drum brakes. The forks a are uprated from the standard forks to remove the 'slack' feeling. This will dramatically improve your ride and enjoyment.

The kit has everything you need to convert it from drum to disc with a choice of 26mm or 30mm legs

The kit includes:

  • 1 x Front hub
  • 1 x Disc 155mm
  • 1 x Speedo drive and cable
  • 1 x Rubber brake hose

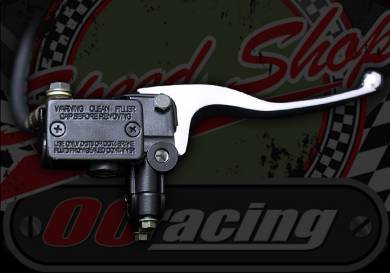

  • 1 x Brake kit. Caliper and master cylinder pre bled
  • 1 x Head stock bearing kit taper roller
  • 1 x Top and bottom yoke top yoke will take single bolt risers or standard folding bars
  • 2 x Fork legs 26mm or 30mm Axle to top 620mm



All you need is a bike, front fender, and head lamp bracket or head lamp bracket clamps.
See part number here for the OE fitment 0585
We are able to supply fenders, headlamps, headlamp brackets and clamps. See the DAX section.

NOTE:
We recommend bleeding the brake system before first use to ensure your safety even though they are prebled.

26mm OPTION Has no top lugs on top yoke.




Product Code 0584
Condition New
Weight 10.000Kg
