Engine. 125cc. 2 Valve. Loncin. Original style replacement engine. Suitable for Madass

Engine. 125cc. 2 Valve. Loncin. Original style replacement engine. Suitable for Madass
  • Click to enlarge

£333.94 £278.28 ExVAT

This product is currently out of stock

Product Code: 7630

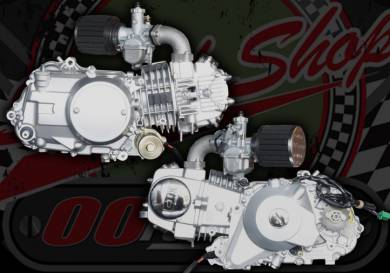

125cc Engine original style 125 replacement engine Suitable for Madass

Now with new style clutch cover and Black painted cylinder photo to be updated

This engine is a direct plug and play unit suitable for the Madass 125 bikes it’s the same spec as the OE engine complete with starter motor.


Specifications:

Type: 4-Stroke single-cylinder OHC - air cooled
Bore & Stroke: 52.4 X 55.5mm
Compression ratio: 9.6: 1
Displacement: 124
Max. BHP: 11 @ 8, 500 RPM
Max. Torque: 9.5 N. M / 5000 RPM
Starter: Kick Start and Electric start
Spark plug: A7TC or NGK C6HSA
Ignition system: CDI (Capacitive Discharge Ignition)  3 Phase charging for use with 4 pin CDI
Lubrication: Pressure / Splash
Oil capacity: . 1L (10w-40-SE)
Clutch: Manual Clutch (4 plate)
Gears: 4 speed, 1-N-2-3-4

Carb kit option if required below



Product Code 7630
Condition New
Weight 28Kg
