Cam sprocket. 32T or 34T V.V.T-35. YX150, YX160, YX170, Z155. 2V and 4V. Adjustable valve timing

Cam sprocket. 32T or 34T V.V.T-35. YX150, YX160, YX170, Z155. 2V and 4V. Adjustable valve timing
  • Click to enlarge

£29.99 £24.99 ExVAT


Product Code: 0068

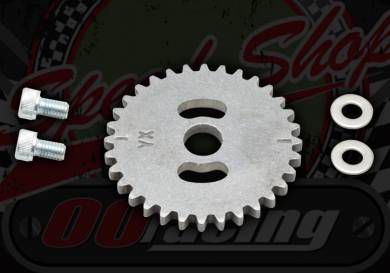

Cam sprocket V.V.T-35 . YX 150/160/170 4Valve

V.V.T-35 (Variable Valve Timing 35 degrees)

We have produced these sprockets with up to 35 degrees of adjustment so you can get your valve timing “LCA” bang on.

Due to the number of cams on the market and the amount of difference in how the crank shaft sprocket has been pressed on you will not be able to adjust to the last degree.

Specifications:

  • 4.9mm thick
  • 62mm diameter overall
  • 12mm centre hole
  • 32 teeth
  • M6 slotted bolt holes
  • 35 degrees of movement

This is now the new Extra hard version, impossible for us to machine so we have had the slots water jetted out, not as smooth but the function is fine.

This product is for engine tuner with experience in setting the valve timing with the correct method of timing dice and dial gauge.

Getting the right LCA can give you complete control of where you need you engine to develop its power.

Please note the higher cost of this is to cover the bespoke production in the uk. Unit comes supplied with bolts and washers.

Product Code 0068
Condition New
Weight 0.3Kg
