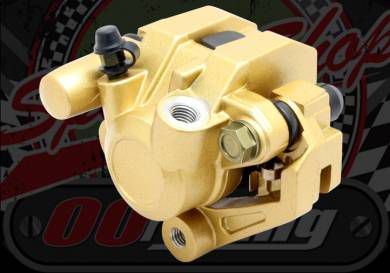

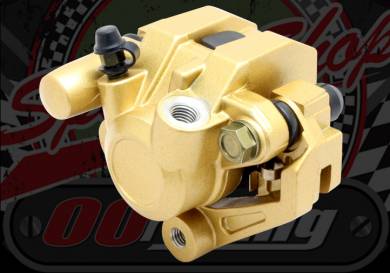

Brake. Caliper. Front. Large 30mm piston GOLD cast non flex bracket

Brake. Caliper. Front. Large 30mm piston GOLD cast non flex bracket
  • Click to enlarge

£25.00 £19.20
£16.00 ExVAT

Product Code: 1180

Front brake caliper larg 30mm piston


43mm bolt centers M8 threded "these bolt centers can be used on the 45mm classed centers with a small amount of filing out with round file"

Caliper bolt face to center line of disc is 25mm when slider is in the static position

Overall width of caliper 77mm at widest point

Left hand mounting "when sitting on bike"

Cast alloy bracket NON FLEX gives a solid response over the steel type

See part number: 0854 for replacement pad range



Supplied with

1 x M10 x 1.25 banjo bolt and sealing washers

1 x Bleed nipple with rubber cover boot

1 x Stock set brake pads BLACK ORGANIC



Product Code 1180
Condition New
Weight 0.5Kg
