Rack. Bracket. Component. Adaptor. Tail light. Standard monkey or Gorilla with rack

Rack. Bracket. Component. Adaptor. Tail light. Standard monkey or Gorilla with rack
  • Click to enlarge

£4.98 £4.15 ExVAT

Product Code: 9807

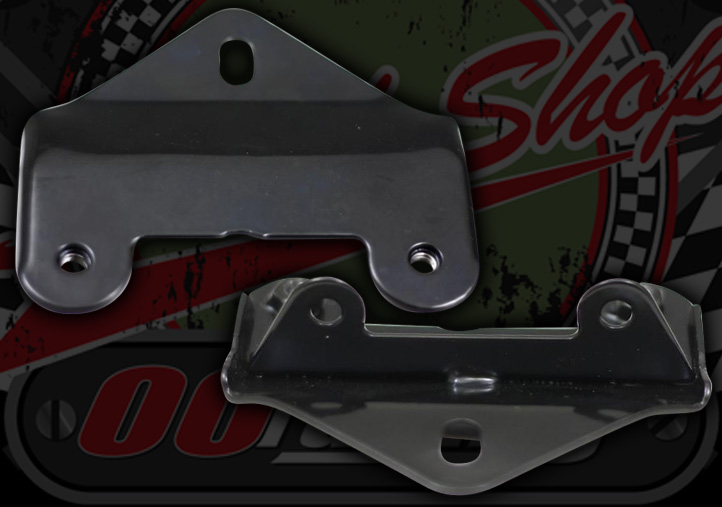

Tail light fixing bracket. This bracket works with the standard monkey rear rack to attach the most common rear light with number plate holder that comes with Jingchen or Skyteam bikes.

Specifications:

  • 6mm threaded standard bolt holes
  • 75mm centres. M6 thread.(fix to tail light assembly and rack)
  • 60mm centres. M6 hole.    (fix this bracket to rack)
  • 100mm Width (overall)
  • 90mm Length (overall)



Requires 2 of M6 X 16mm to fix it to the rack and 3 of M6 X 20mm to fix rear light holder to rack and bracket assembly.

LINK TO THE RACK

LINK TO LIGHT/NUMBER PLATE HOLDER





Product Code 9807
Condition New
Weight 0.2Kg
