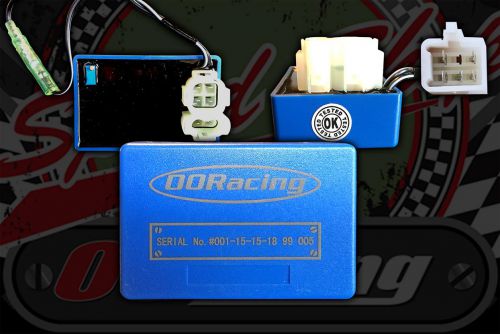

CDI. 5 Pin. Easy Start. Performance unit

CDI. 5 Pin. Easy Start. Performance unit
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

£19.99 £16.66 ExVAT

(Quantity discounts available)


Product Code: 9306-5

SADLY NEW VERSION HAS NO REV CONTROL DO NOT ORDER IF YOU WANT REV CONTROL

New version CDI with smoother transit advance curve and improved soft anti vibration gel for better protection.

CLICK TO SEE TEST VIDEO

Fits looms with 5 PIN A/C Chinese connectors.

Will only work with larger flywheels greater than 90mm

Rev limiter incorporated:

  • The unit is supplied with a pair or white wires coming out of the unit. Connect these to engage the rev limiter.
  • Leave the wires unconnected to allow free revving.
  • The small brass screw on the side of the unit limits the max revs from 3000 RPM to 13000 RPM; Turn clock wise to increase RPM & Anti clock to reduce RPM
  • Choice of switch to engage or disengage rev on demand.



Why have we made this unit:

  • Some performance engines will go into valve bounce at around 12000 RPM during shifting up the gears. This may cause a major flat spot in the start of the next gear rev range due to turbulence in the intake from the valve bounce, so if we set the rev limiter to cut in 200 rpm before the bounce you can avoid this. It eliminates any turbulence in the intake avoiding a flat spot when you get back on the gas.
  • No more burbling back out through the carb!
  • With the flick of a remote switch you can restrict your bike to 30 mph



Unlike a lot of standard or performance CDI's; This will keep the advance down for starting making the engine far less susceptible to kick back during starting.



Timing and advance info:

  • Safe start system retard.
  • Static 0 to 500 RPM 10 Degrees
  • 1st advance over 500 to 2000 RPM 20 Degrees
  • 2nd Advance over 2000 to 3000 RPM ramping up to 38 degrees overall advance from idle 18 Degrees
  • Advance and static is relevant to pulse coil gap and size of trigger.
  • Recommended pulse coil gap 0.8mm



Specifications:

  • A = 75mm
  • B =22mm



PLEASE NOTE

THE CDI REQUIRES RUBBER MOUNTING TO ENSURE LONGEVITY. THESE RUBBER STRIPS ARE IDEAL. ALTERNATIVELY WE HAVE HIGH DENSITY FOAM PADS THAT MAY SUIT YOUR NEEDS.

NOT FOR USE WITH INNER ROTORS



Product Code 9306-5
Condition New
Weight 0.300Kg

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


Quantity Price per unit
10+ £14.17
