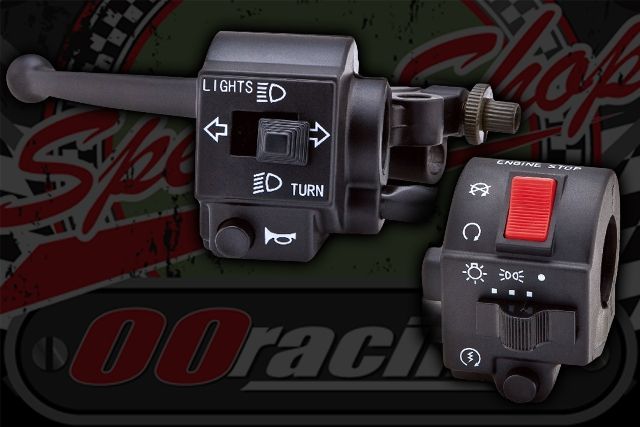

Switch gear. Madass 50 early style pair

This switch gear uses the TWIST lock type cable mount not the M10 x 1.25 threaded type

Kit includes:

• Black ABS plasic casing
• Pair short wires (to brake switch) Female Spade terminals. Sheilded.
• Wire Loom 10 wires (9 male bullet, 1 female Bullet Grey/White)
• Grip
• Throttle Sleeve Nylon (grip attached)

Specifications:

• Fits standard width 7/8th"  (22mm) bars
• 400mm Wiring loom with male bullet connectors
• 130mm Grip length
• 32mm Grip Diameter
• 45mm Wide body
• 65mm Height body

Functions:

• Lights OFF/PILOT/MAIN
• Start button
• Engine kill switch
• Brake switch wires

Wiring Loom:

• Yellow - Power input +
• Brown - Speedo light
• Yellow-White - Side light
• Grey/White - Head light (connecting Grey/White on 9980)
• Green - Start switch ground
• Yellow/Red - Start switch
• Light Green - Kill switch
• Black/White - Kill switch
• Black - Brake
• Yellow/Green - Brake

Seperate short wires:

• Black - Brake
• Yellow/Green - Brake

Switch gear universal L/H Early Madass style

New Product from 26/05/2015

Kit includes:

• Switchgear body with intergral Perch
• Clutch Lever
• Wiring Loom
• Cable adjustor
• Clutch switch
• Grip

Functions:

• Perch
• Clutch Lever
• TURN L/R
• High/Low beam
• Horn
• 10mm Mirror mount
• Clutch switch
• Cable Adjustor

Specifications:

• Fits standard width 7/8th"  (22mm) bars
• 400mm cable with male bullet connectors
• 160mm Length Clutch Lever
• 40mm Wide Body
• 60mm Deep body excluding perch

Wires:

• Blue - High beam
• Grey/White - Head light (Connect to Grey/White on 9981)
• White - Low beam
• Orange - Flasher R/H
• Grey - Flasher feed in +
• Light Blue - Flasher L/H
• Green - Ground
• Light Green - Horn feed
• Black - Clutch switch
• Yellow/Green - Clutch switch
