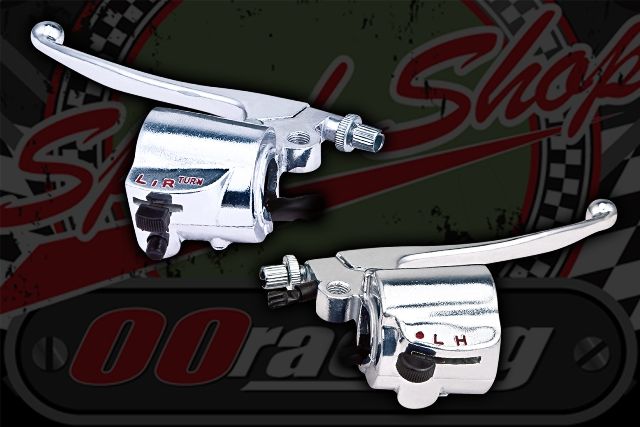

Switch gear. alloy CB style alloy

Switch gear. alloy CB style alloy
  • Click to enlarge

£29.98 £24.98 ExVAT

Product Code: 1567
  • Switch with intergrated perch
  • Grip
  • Throttle sleeve Nylon
  • Lever
  • Brake switch + wires
  • Cable fitting M10 x 1.25



Functions:

  • Lights OFF/LOW/HIGH
  • Includes brake light switch
  • M10 Mirror mount
  • Intergrated perch



Specifications:

  • Fits Standard width 7/8th"  (22mm) bars
  • 400mm Wiring loom with male bullet connectors
  • 165mm Lever
  • 130mm Grip Length
  • 32mm Diameter grip
  • Locating pin
  • 6V or 12V



Wiring:

  • Yellow - Power input + A/C or D/C
  • Brown - Side lights
  • Brown/White - Low beam
  • Blue/White - Headlight
  • Black - Brake
  • Yellow/Green - Brake



Functions:

  • TURN L/R
  • Horn
  • M10 Mirror mount



Specifications:

  • Fits standard width 7/8th"  (22mm) bars
  • 400mm wiring loom with male bullet connectors
  • 130mm Grip length
  • 31mm Diameter Grip
  • 50mm Wide body
  • 55mm diameter body excluding perch



Wiring:

  • Light Blue - Flasher L/H
  • Orange - Flasher R/H
  • Grey - Flasher feed in
  • Light Gree - Horn
  • Green - Ground
Product Code1567
ConditionNew
Weight0.3Kg
