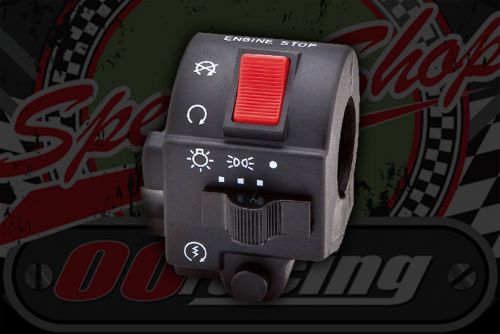

Switch gear universal R/H with throttle Tube/Grip

This switch gear uses the TWIST lock type cable mount not the M10 x 1.25 threaded type

Kit includes:

  • Black ABS plasic casing
  • Pair short wires (to brake switch) Female Spade terminals. Sheilded.
  • Wire Loom 10 wires (9 male bullet, 1 female Bullet Grey/White)
  • Grip
  • Throttle Sleeve Nylon (grip attached)



Specifications:

  • Fits standard width 7/8th"  (22mm) bars
  • 400mm Wiring loom with male bullet connectors
  • 130mm Grip length
  • 32mm Grip Diameter
  • 45mm Wide body
  • 65mm Height body



Functions:

  • Lights OFF/PILOT/MAIN
  • Start button
  • Engine kill switch
  • Brake switch wires



Wiring Loom:

  • Yellow - Power input +
  • Brown - Speedo light
  • Yellow-White - Side light
  • Grey/White - Head light (connecting Grey/White on 9980)
  • Green - Start switch ground
  • Yellow/Red - Start switch
  • Light Green - Kill switch
  • Black/White - Kill switch
  • Black - Brake
  • Yellow/Green - Brake



Seperate short wires:

  • Black - Brake
  • Yellow/Green - Brake



Product Code 9981
Condition New
Weight 0.3Kg
