Swinging arm 508R CNC monkey fitment +4 +10 +16

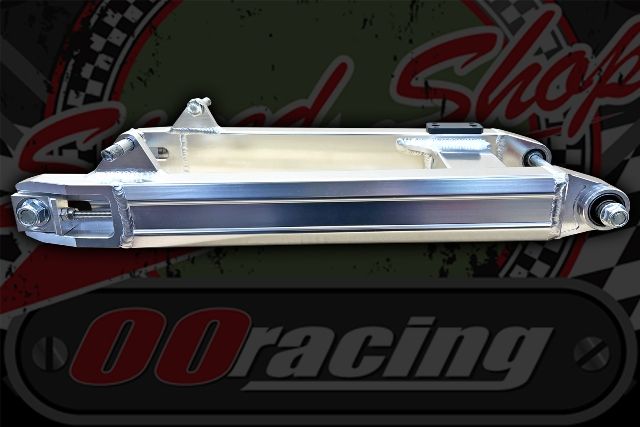

New heavy weight arms bigger box section with CNC ends.

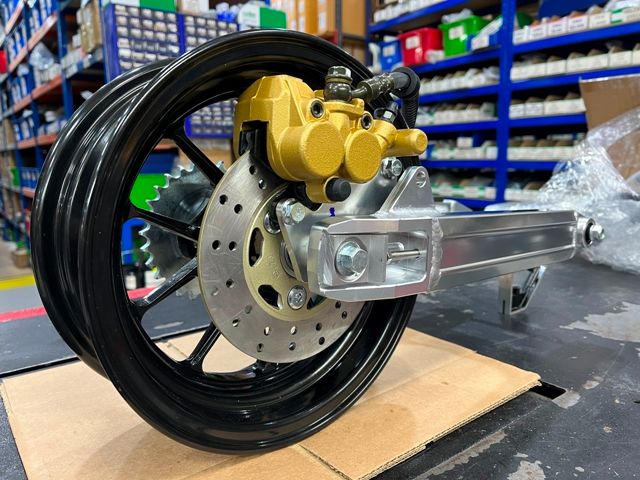

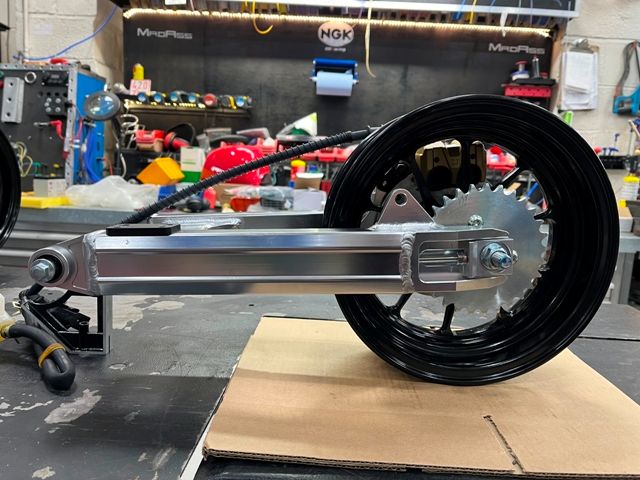

Drum or disc fitment.

Box section 54mm x 31mm

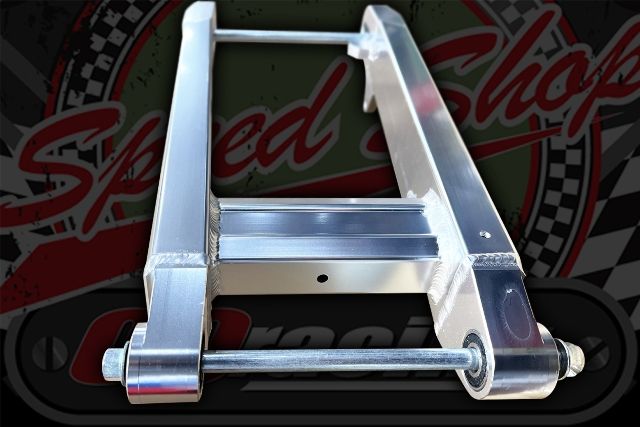

Max width between rails at front 138mm

Max with rear when axle passes 165mm

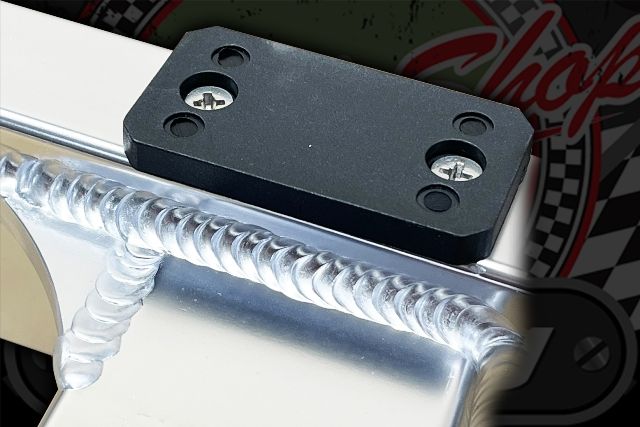

Top chain guide 30mm x 57mm

Rubber bushed arm pivot.

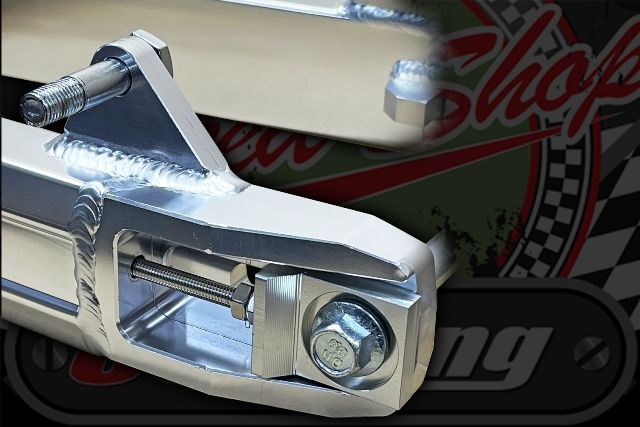

CNC chain adjusters



With rubber swinging arm bushes you only want to tighten the pivot bolt enough so the centre of the bush can still rotate on full swing.

Don’t run the chain too tight or it will rip out the left side bush.

Bigger CC high torque engine will hammer the bushes







Product Code 5798
Condition New
Weight 4Kg
