Gen. Stator core YX150 Electric start. Single phase. 40W

Gen. Stator core YX150 Electric start. Single phase. 40W
  • Click to enlarge

£27.00 £22.50 ExVAT

Product Code: 9561

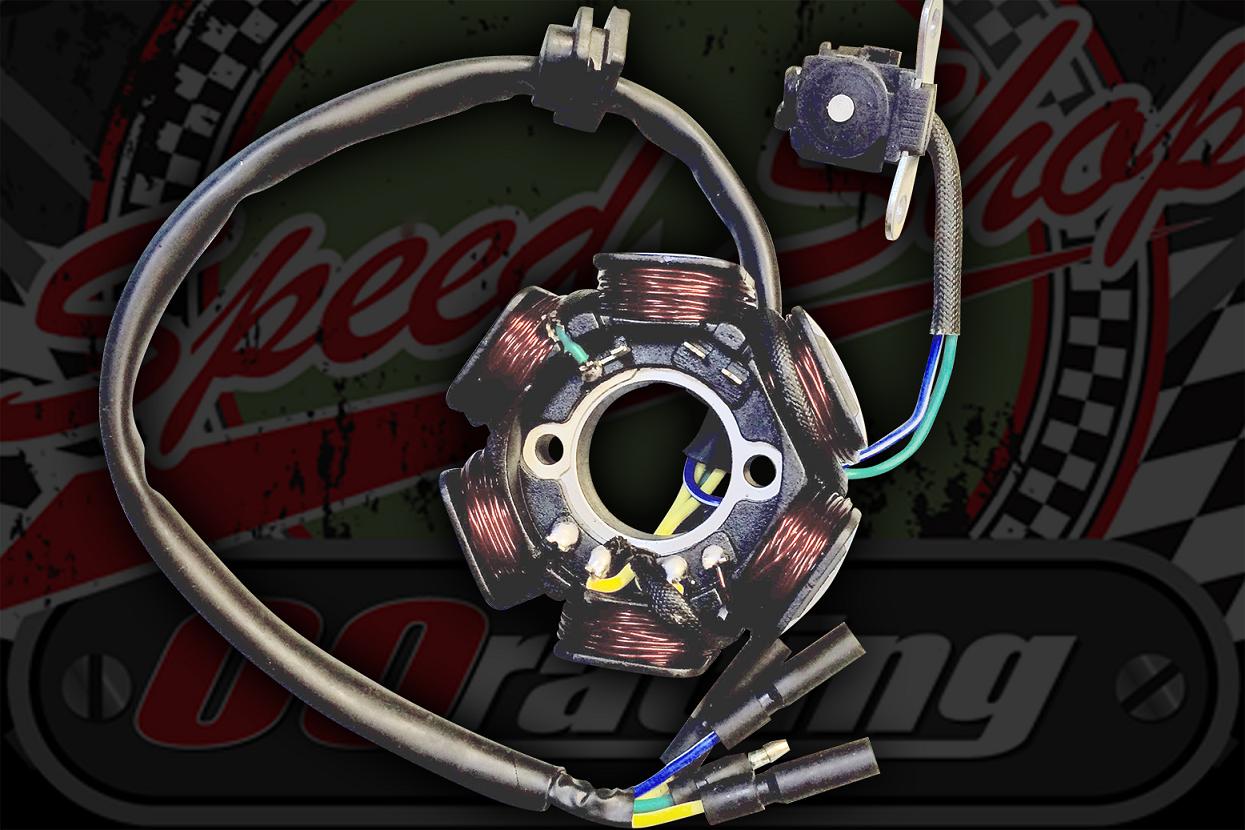

This is the Generator for the Electric start YX 150 Engines It bolts to the Generator cover and has the pickup for the trigger attached and 5 wires connecting it into your loom.

It is for the production of about 40W but needs to be wired into the our 75W Reg/Rec

This unit requires you to use a 4 Pin CDI. We recommend our unit as they were tested and configured to work well with them.

Wiring Info:

  • 1 X Blue/white: Trigger
  • 1 X Green: Earth
  • 2 X yellow: Goes to the Reg/Rec
  • 1 X black/red: source



Specifications:

  • 38mm bolt hole centers
  • 75mm Diameter
  • 32mm Depth
  • 28mm Internal Diameter
  • 400mm Loom length
  • 6 coils
  • Single phase



Product Code 9561
Condition New
Weight 0.4Kg
