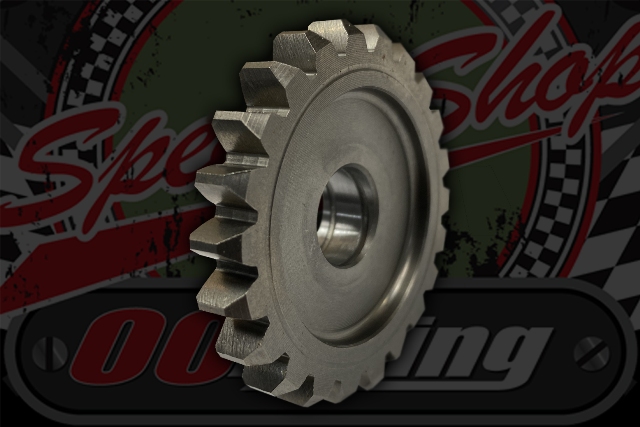

Kick start gear Idle 22T Z190

Kick start gear Idle 22T Z190
  • Click to enlarge

£13.99 £11.66 ExVAT


Product Code: 8560

Kick start gear Idle 22T

We recommend you put the original shims on the front of gear and one new one on the back .95mm

Shim part number 9791

Specifications:

  • 7.1mm thick teeth
  • 14mm Overall Thickness
  • 6.0mm Thick notched (Stub)
  • 22.0mm Diameter External (Stub)
  • 22 Tooth External
  • 57.2mm Diameter External
  • 15mm Aperture
Product Code8560
ConditionNew
Weight0.2Kg
