Flywheel & stator core for Z190 E start

Flywheel & stator core for Z190 E start
  • Click to enlarge

£49.98 £41.65 ExVAT


Product Code: 3032

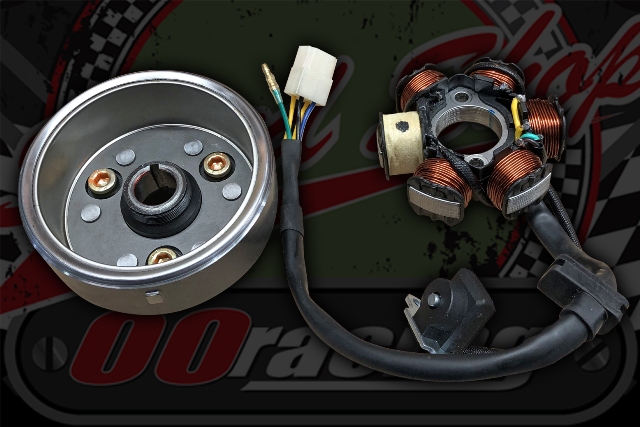

Flywheel & stator core for Z190

These are removed from new engines

Single phase 2 yellow  wires

Crank taper large type 18/21mm

Include 3 roller starter clutch

80mm core O/D

M6 mountings 42mm Centres

30mm overall thick

Flywheel

Opening 85mm

O/D 102mm

Depth 32mm

5.3mm Trigger





Wiring

Black/red  = Source coil

Blue/white = Trigger

Green = Neg

2 Yellows = single phase charging

Product Code3032
ConditionNew
Weight2Kg
