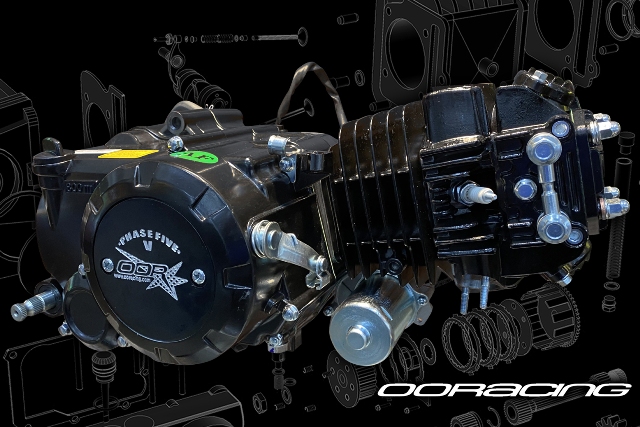

Engine. 140cc. 2 Valve. OORacing. Phase 5. Direct fit for 50cc and 125cc chassis. PLUG & PLAY. Suitable for MadAss

Engine. 140cc. 2 Valve. OORacing. Phase 5. Direct fit for 50cc and 125cc chassis. PLUG & PLAY. Suitable for MadAss
  • Click to enlarge

£544.99 £454.16 ExVAT


Product Code: 7504

Engine. 140cc. Phase 5. Direct fit for 50cc and 125cc chassis. PLUG & PLAY. Suitable for MadAss

Here we have put together plug and play kit suitable for the Madass range of bikes.

Its  a complete kit with all you will need to convert your bike to a 14 bhp cruisers.

This engine comes supplied with the needle roller bearing type gear box for increased durability making it one of the most reliable on the market.

Gear box selector gate positive stop “no jumping gears” 4 speed transmission, strengthened gears, all up gears N-1-2-3-4 starts in any gear.



Specifications:

  • Cylinder:                           56mm. Alloy
  • Valve springs:                   Up rated
  • Clutch:                             5 Plate clutch
  • Valves:                             27mm inlet, 23mm exhaust
  • Bore * Stroke:                   56mm * 57mm

Supplied in this kit

  • Spark plug NGK C7-HSA
  • Manifold heat spacer and Molkt 26mm carb foam
  • Force 46mm air filter
  • Running in and service info is supplied with this kit
  • 3 Phase SS3 530 gram genarator
  • Clutch cable longer secondary type
  • Off set kick start
  • Gear change folding tip type

Options below are for what your bike was or is to start with so we can make the right parts to match your bike.

Please note that any of our engines we can make into plug and play suitable for the Madass 50 & 125 bikes

The 50cc and 125cc Frames are a different size. Choose the frame size so we can build your engine to fit correctly.





PLEASE NOTE:

These performance engines must not be run on the stock exhausts systems as they will choke the system.

Product Code7504
ConditionNew
Weight35Kg
