Cylinder & piston kit 110cc 52.4mm 90 to 110cc 12V

Cylinder & piston kit 110cc 52.4mm 90 to 110cc 12V
  • Click to enlarge

£59.99 £49.99 ExVAT


Product Code: 4570

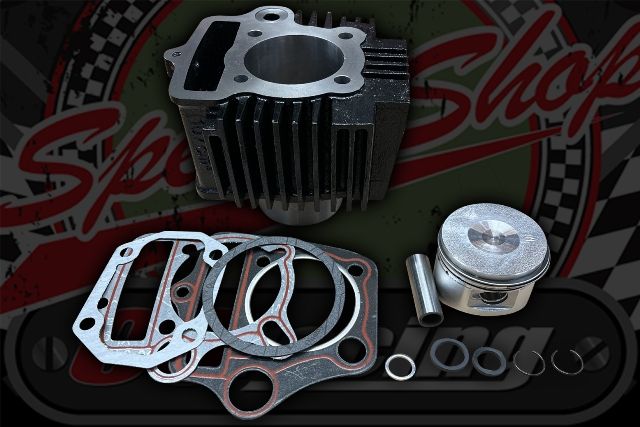

Cylinder & piston kit  52.4mm 110cc  12V

110 cylinder  will fit most 90cc chinese engines that have the 56mm crankcase opening

Can be used with the cub engines but the deck height is lower so will the compression.
Cylinder lenght overall 95.5mm
Length face to face 69.2mm
Skirt size 56.4mm
Bore 52.4mm

Piston flat top

13mm pin

Deck height 19.2 centre of pin

Complete with top set of gaskets

Product Code 4570
Condition New
Weight 3Kg
