Big bore kit. Convert 49cc to 72cc. Includes carb kit

Big bore kit. Convert 49cc to 72cc. Includes carb kit
  • Click to enlarge

£190.00 £158.33 ExVAT


Product Code: 0700

Complete kit to bore up the standard 12V 49cc engine to 72cc.

You will need to use an EGR Blanking plate with this head. We offer the option to purchase one here as many already have them.

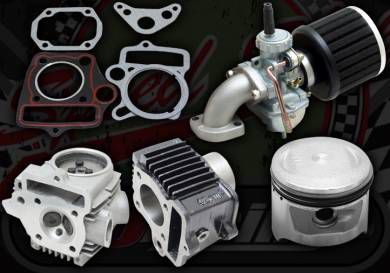

Included in the kit:

  • A big valve head
  • 23mm Inlet valve
  • 21mm Exhaust valve
  • A 47mm piston
  • A 47mm cylinder. Cast iron
  • A 22mm YSN carb kit
  • A manifold
  • A Force 35mm air filter
  • Gaskets to fit kit to bike



The kit will take the about 1.5 hrs to fit and will pull around 50mph depending on your weight!!



Barrel Specifications:

  • 47mm barrel
  • 62.6mm height. Base face to head face
  • 88.7mm height. Overall
  • 1655grams
  • 52.3mm Diameter. Skirt. Outside.

Due to the number of different applications this kit fits some will require the fins under the carb to be ground down to clear base of the carb..

Useful Links:



Product Code0700
ConditionNew
Weight5Kg
