Reg Rec. 12v. 4 pin. SPLIT PHASE A/C lighting. D/C charging

Reg Rec. 12v. 4 pin. SPLIT PHASE A/C lighting. D/C charging
  • Click to enlarge
  • Click to enlarge

£11.99 £9.99 ExVAT


Product Code: 0932



Reg Rec. 12v. 4 pin. A/C lighting. D/C charging
Found on most monkey bikes

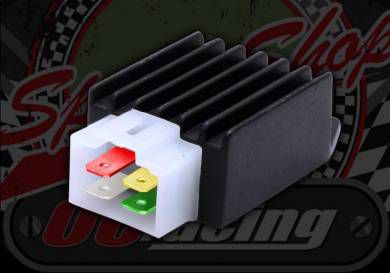

Photo shows the colour feeds in to the unit.
How do you know if you have a single phase charging system, if your main head light comes on when the engine is not running its a single phase Reg/Rec you need part number 8681, if the main lights only work with the engine running you have a split phase system. Also if you hasve a white and yellow wire coming from your stator; its a good indication of a split phase system.
Body colour may vary in colour.

Please take note from photo of wire colours as some makes vary.

6mm bolt fixing hole.



Product Code 0932
Condition New
Weight 0.1Kg
