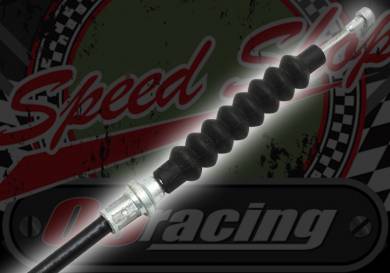

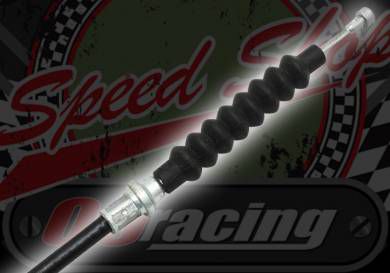

Cable. Clutch. Primary style. Mid adjuster type Choice on lengths

Cable. Clutch. Primary style. Mid adjuster type Choice on lengths
  • Click to enlarge

£8.99 £6.00
£5.00 ExVAT

Product Code: 0178

Primary clutch cables are for the engines that have the lever coming out at the front of the clutch cover as the have the clutch on the end of the crank shaft.

The have 2 ways to gain the right amount of adjustment 1st adjusted on the clutch push rod and the 2nd is using the mid way cable adjuster this has approx 15mm of adjustment

See below length options inner overall length of wire and outer cable “ both are measured from end to end”

Please compare lengths with your one before ordering

Lengths are approx due to adjustment

           Outer   x   Inner

10A = 783mm x 850mm 58400-10A00

14A = 900mm x 965mm 58400-14A00

15A = 770mm x 840mm 58400-15A00

16HS = 882mm x 950mm Short version 58400-16H00

16HL = 945mm x 1005mm Longer version 58400-16H10

27A = 710mm x 805mm No mid adjuster 58400-27A00

30H = 900mm x 990mm

31H = 840mm x 960mm



Product Code 0178
Condition New
Weight 0.2Kg
