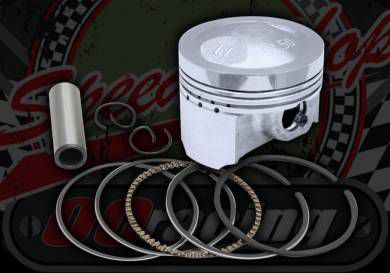

Piston. 52.5mm. High compression. Big valve conversion. 13mm Gudgeon pin
Kit for use when converting to big valve heads with 27/23 valves bore will need honing out to 52.5mm
Specifications:
- A = 52.5mm
- B = 38.5mm
- C = 13.0mm
- D = 26.5mm
- E = 20.5mm
- F = 37.0mm
PLEASE NOTE:
Cams with 6.5mm and more you will need to pocket pistons.
Check piston to deck and valve clearance
Please check all the dimensions so you know the piston will work with your application
Piston kits come complete with Rings, Pin, Cir clips. These will be inspected and fitted before dispatch.
